EGOBUTYL 240 KFZ-/ISOBAND
EGO BUTYL RUBBER
The individuals – EGOBUTYL
Whether its Butyl tape, Butyl round cord with or without a core, Butyl tape with various laminations or simply barrel melting butyls, the versatile material properties of the EGO Butyl products and the individual profiling offer an extraordinary range of possible applications.
EGO TAPES – the internal value makes all the difference
EGOTAPE 2000 ALUDICHTBAND
Butyl tape with aluminum foil
EGOTAPE 2000 ALUDICHTBAND is an aluminum-laminated Butyl rubber-based sealing tape with self-adhesive, thermoplastic properties, which is coated with a tear-resistant aluminum foil. Sealing is provided by the Butyl compound based on the thickness of the compound in combination with the airtight aluminum lamination - high Radon and water vapor Diffusion tightness can be achieved with EGOTAPE 2000 ALUDICHTBAND. Both open and covered joints can be permanently sealed with EGOTAPE 2000 ALUDICHTBAND. In addition, EGOTAPE 2000 ALUDICHTBAND is characterized by its sustainability values as a joint tape in the field of "sustainable building" and is verified according to the DGNB, LEED, BREEAM and BNB assessment systems.
EGOTAPE 2000 ALUDICHTBAND is ideal for universal sealing of joints in the entire construction sector with maximum vapor Diffusion tightness and as a universal sealing tape in the entire automotive, bodywork and special vehicle construction sector.
- aluminium-coated sealing tape
- tear-resistant laminated aluminium foil
- high water vapor Diffusion tightness
- Radon-tight according to G. Keller
- building material class E according to DIN EN 13501-1
- self-adhesive on one side
- immediately functional even without Primer
- UV-resistant
- weather-resistant
- water-resistant
Areas of application
- Automotive,
- Concrete,
- Caravan,
- Roof,
- Windows,
- Glass,
- Air conditioning & heating,
- Ventilation,
- Metal,
- Special vehicle construction,
- Underground construction,
- Wall connection
-
1C system -
100 % free of bitumen -
100 % free of solvents -
Corrosion resistant -
Odorless -
Radon protection -
Smooth foil/film surface -
UV, ageing, weather resistance -
Watertightness & water-resistance tested -
soundinsulating property -
water vapour diffusion resistance
-
AgBB Committee for Health-related Evaluation of Building Products -
baubook -
DGNB German Sustainable Building Council -
VOC-Class A+

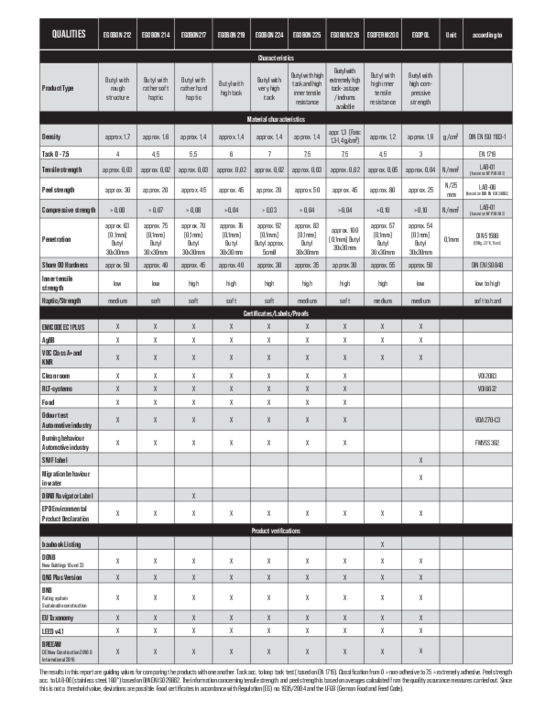

Overview EGO butyl
Possibilities of comparison density, comp. strength, tens. strength, peel strength, shore 00, Tack, texture/strenght, inner tensile strength,characteristics and certificates.
Overview EGOBON Series
Material Properties of EGOBON series.
EGO Butyl tapes are malleable sealing tapes with precise profile structures, which have been used as an addition or alternative to the usual injection sealants for more than 40 years. The versatile material properties of the EGO Butyl products and the individual forms offer an extraordinary range of possible applications. They comply with the application recommendations of the IVD leaflet no. 5. International test certificates and expert reports confirm the excellent characteristics of the EGO products.
Butyl characteristics
- ready-to-use, non-reactive tapes, the properties of which do not change over decades
- permanently adhesive and malleable with partly elastic properties
- self-sealing and immediately functional after processing
- stable in volume and solvent-free, resistant to ageing, weather and UV
- outstanding resistance to water vapour
- physiologically safe and environmentally friendly
- virtually unlimited shelf life
- excellent compatibility with most conventional construction materials, including Bitumen and plasticiser-free foils and plastic components, such as polycarbonate, polyacrylate, hard PVC, polyethylene, etc.
Compatibility of the EGO Butyl tapes with sealants must be confirmed by the respective manufacturers. We generally recommend using our EGO oxim and alcoxy silicone sealants.
Butyl qualities
The EGO Butyl qualities generally differ in:
- Density
- Pressure resistance
- Tensile strength
- Impact strength
- Shore 00 hardness and Penetration
- Tack
- Inner tensile strength
Specific material properties
- Surfactant resistance
- Chemical resistance
- Melting properties
- Suitability for use with food
- Microbiological resistance, and much more
Production engineering
Our flexible production engineering, developed in-house, ensures customised production with high quality standards (DIN ISO 9001). As a result, our EGO Butyl tapes have an extraordinarily large product range when it comes to shape, structure and properties:
- Block profiles in thicknesses of 0.5 mm to 40 mm and widths of 3 mm to 400 mm
- Round profiles with diameters of 2 mm to 80 mm
- Injections in round profiles as cotton, nylon, rubber or foam cores (for tear or distance protection)
- All types of lamination, e.g. with foils, textiles, fleece or mesh
- Rolls with outer diameters of up to 500 mm
- Production of multi-strand large rolls
- Delivery in disposable or reusable packaging
- Delivery as bulk goods in barrels
Individual special profiles
We are happy to directly implement your individual customer requirements and offer EGO Butyl tapes not only as tapes, but also in a wide selection of:
- Special profiles (e.g. trapezoid or U shape)
- Square and round profiles
- Sections with lengths from 4 cm
- Punched parts from a thickness of 2 mm
